Name: MKS Gen V1.4 Motherboard
SKU: BDH100009
Price: 60.00 EUR
Availability: InStock

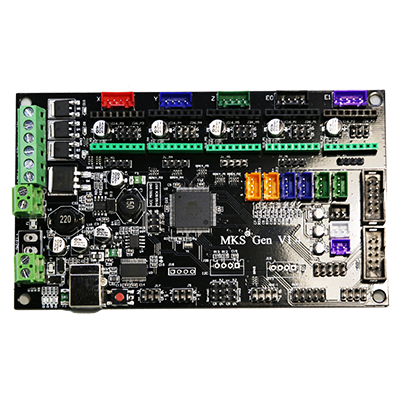

MKS Gen V1.4 Motherboard

60.00€ + VAT*

Motherboard MKS Gen V1.4 is sold as replacement part for B2X300 control board, ready for dual extruder control and trinamics integration.

Main features:

Mega 2560 and ramps1.4 set on a board
Replace the motor drive, drive and support for TMC2130 stepper drivers used in B2X300 printer.
The circuit board with high-quality 4-layer, heat and made a special optimization; ramps are 2 shelves.
Using high-quality MOSFET, and better heat dissipation.
Using a dedicated power chip, support 12V-24V power input, the voltage converter chip to solve the heat problem in Ramps.

Motherboard MKS Gen V1.4 is sold as replacement part for B2X300 control board, ready for dual extruder control and trinamics integration.

Main features:

Mega 2560 and ramps1.4 set on a board
Replaceable stepper driver sockets
Circuit board with high-quality 4-layer, for better heat dissipation and signal integrity
Using high-quality MOSFET, and better heat dissipation.
Resettable fuse to protect against short circuit on the input
Very stable 5v regulator

Specs:

Input voltage: 12-24v

Stepper driver slots: 5

Temperature sensor connectors: 3

Endstop connectors: 6

Heated bed output: 1

Cooling fan output: 1

Hotend output: 2

Includes:

1x MKS Gen 1.4 motherboard
