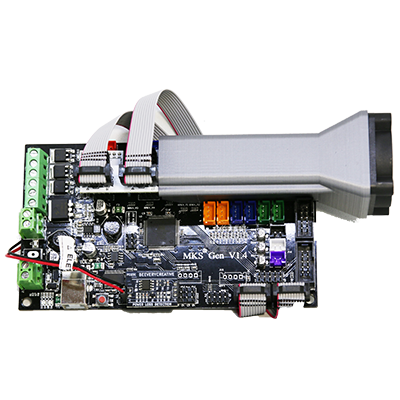

Mks Gen 1.4 motherboard with all peripherals necessary to be used in a B2X300 printer.
- Mega 2560 and ramps1.4 set on a board
- Replaceable stepper driver sockets
- Circuit board with high-quality 4-layer, for better heat dissipation and signal integrity
- Using high-quality MOSFET, and better heat dissipation.
- Resettable fuse to protect against short circuit on the input
- Very stable 5v regulator
- Using a dedicated power chip, support 12V-24V power input, the voltage converter chip to solve the heat problem in Ramps.
- Easy support for TMC2130 stepper drivers using SPI communication
- Powerloss detection
- Includes 5 TMC2130 silent stepper drivers
- Included air duct for stepper driver cooling
- Pre-installed with the latest B2X300 firmware
1x MKS gen 1.4 motherboard
5x Trinamic TMC2130 Stepper Drivers
1x Trinamic SPI communication board
2x Trinamic SPI communication flat cable
1x Powerloss detection board
1x Air duct with fan
