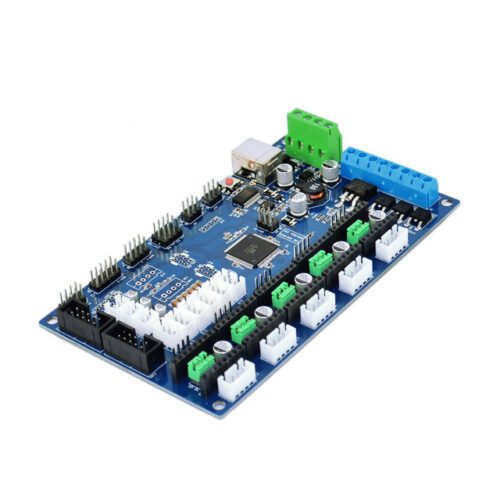

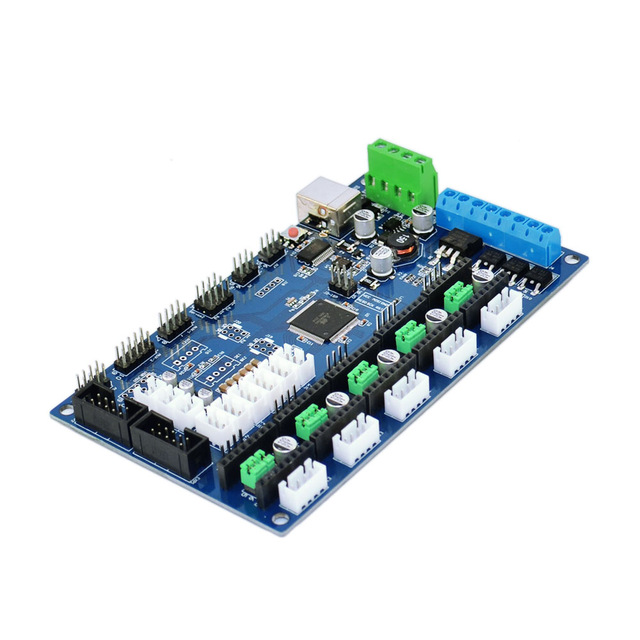

KEYES control board MKS Gen V1.2
50.00€ + VAT*
MKS Gen is a feature rich, all-in-one electronics solution for RepRap 3D printers and other CNC devices.
It features an on-board Microchip ATMEGA2560 microcontroller.
The motor outputs are powered by Pololu pin-compatible stepper motor drivers.
The board features a developer-friendly expansion port providing access to the same ports as RAMPS 1.4.
MKS Gen is designed to be used with power supplies ranging from 12V to 24V.
Out of stock
KEYES control board MKS Gen V1.2 features:
- Arduino MEGA compatible: ATMEGA2560 microcontroller and FT232 USB-UART bridge, compatible with all RAMPS class firmware
- Firmware can use the same configurations as RAMPS 1.4
- Easy DISPLAY + SD-CARD connector, RepRap Discount SmartController compatible pin header on board
- All extra pins are broken out in a fashion similar to RAMPS 1.4 (AUX-1, AUX-2, AUX-3, Servos1)
- 3x Connectors wired to the ADC for temperature control using analog sensors (thermistors)
- Up to 5 motor drivers with easy micro stepping setup (configurable via jumpers)
- 4x PWM capable power-mosfet outputs (Heated Bed, Extruder 1, Extruder 2, Fans)
- 4 Layers PCB to optimize heat dissipation.
- 6x End-stop connectors (X-min / X-max / Y-min / Y-max / Z-min / Z-max) with dedicated lines for +5V, GND and Signal (with on-board pull-up and current limit)
- Headers with several +5V-GND pairs and +24V(or +12V)-GND pairs
- On-board reset-able fuse for short-circuit protection.
| Weight | 0.5 kg |
|---|---|
| Dimensions | 14.5 × 8.5 × 3 cm |
